Product description

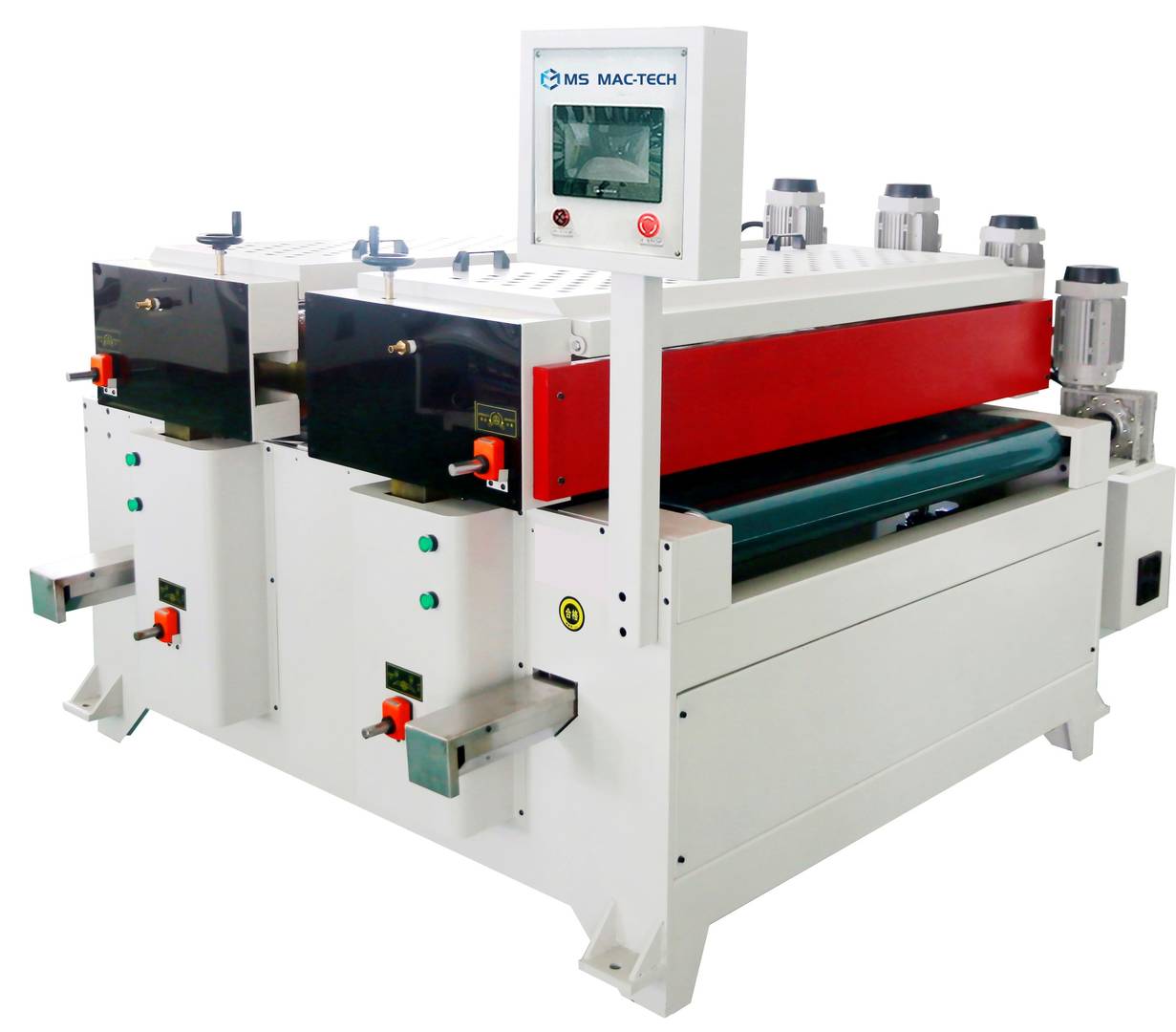

| Model | MS RCL 1300 |
| Working width | 1300mm |
| Working Thickness | 2~80mm |
| Feeding Speed | 5~15m/min |
| Shortest Working Length | 300 |
| Coating Roll Size | 1450×￠240mm |
| Doctor Roll Size | 1450×￠150mm |
| Convey Power | 1.5kw |
| Coating Roll Power | 1.5kw |
| Doctor Roll Power | 0.75kw |
| Up and down system Power (kw) | 0.25 x 2 |
| Paint heating tank Power (kw) | 6 x 2 |
| Total Power | 18.5w |
| Main Electronic components | SHILIN |
| Machine size(L*W*H) | 1800×2400×1600mm |
| Machine weight | 2200kg |

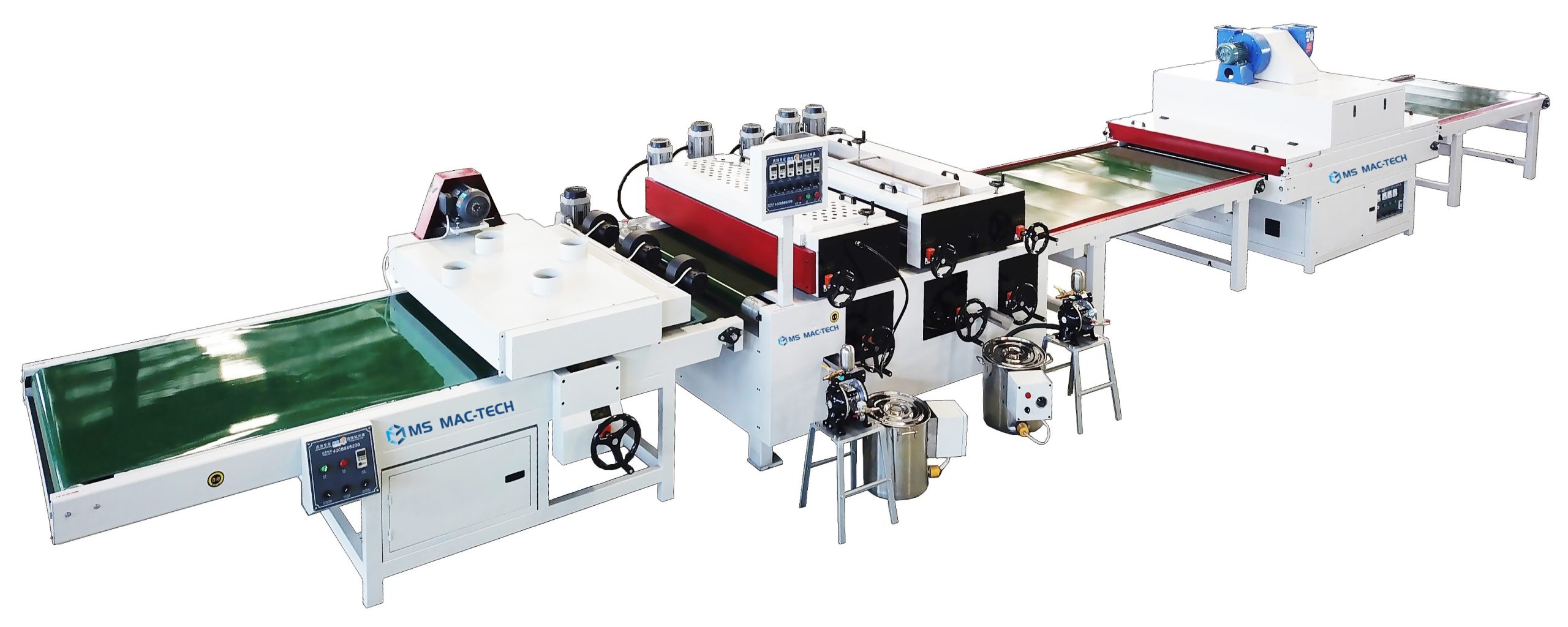

| Model | MSUV III-1300 |
| Max. working width | 1300mm |
| Min. Working Length | 300mm |
| Max. Working Thickness | 100mm |
| Height of conveying Platform | 850mm |
| Feeding speed | 5~15 m/min |
| Fan power | 2.2×2；0.75×1 |
| Conveyor power | 0.75kw |
| UV lamp power | 12kw*3 |
| Total power | 47.9kw |
| Machine size(L*W*H) | 2500×1950×1750 mm |
| Machine weight | 1000kg |
| Model | MSDC Ⅰ-1300 |
| Max. Working Width（mm） | 1300 |
| Feeding Speed （m/min） | 5~15 |
| Fan Power（kw） | 0.2×3 |
| Transporting Power（kw） | 1.5 |
| Brush roller Power (kw) | 1.5 |
| Brush roller Size (mm) | 1340×180 |
| Total Power (kw) | 4.6 |
| Machine Size (mm) | 2300×2000×1400 |
