Product description

Performance characteristics:

1. Human-machine dialogue control system, easy to learn and understand, fast and powerful processing path algorithm, to ensure accurate processing size.
2. Parameterized door width and door height input, one-button start of precise trimming, sawing without edge collapse.
3. Through-type, can be used as a single machine, or can be connected: two automatic lifting conveyor belts, can control the conveying direction,

convenient to connect semi-automatic and fully automatic production lines. Can be connected with production optimization software to achieve automatic code scanning and create higher efficiency.







Technical Parameter

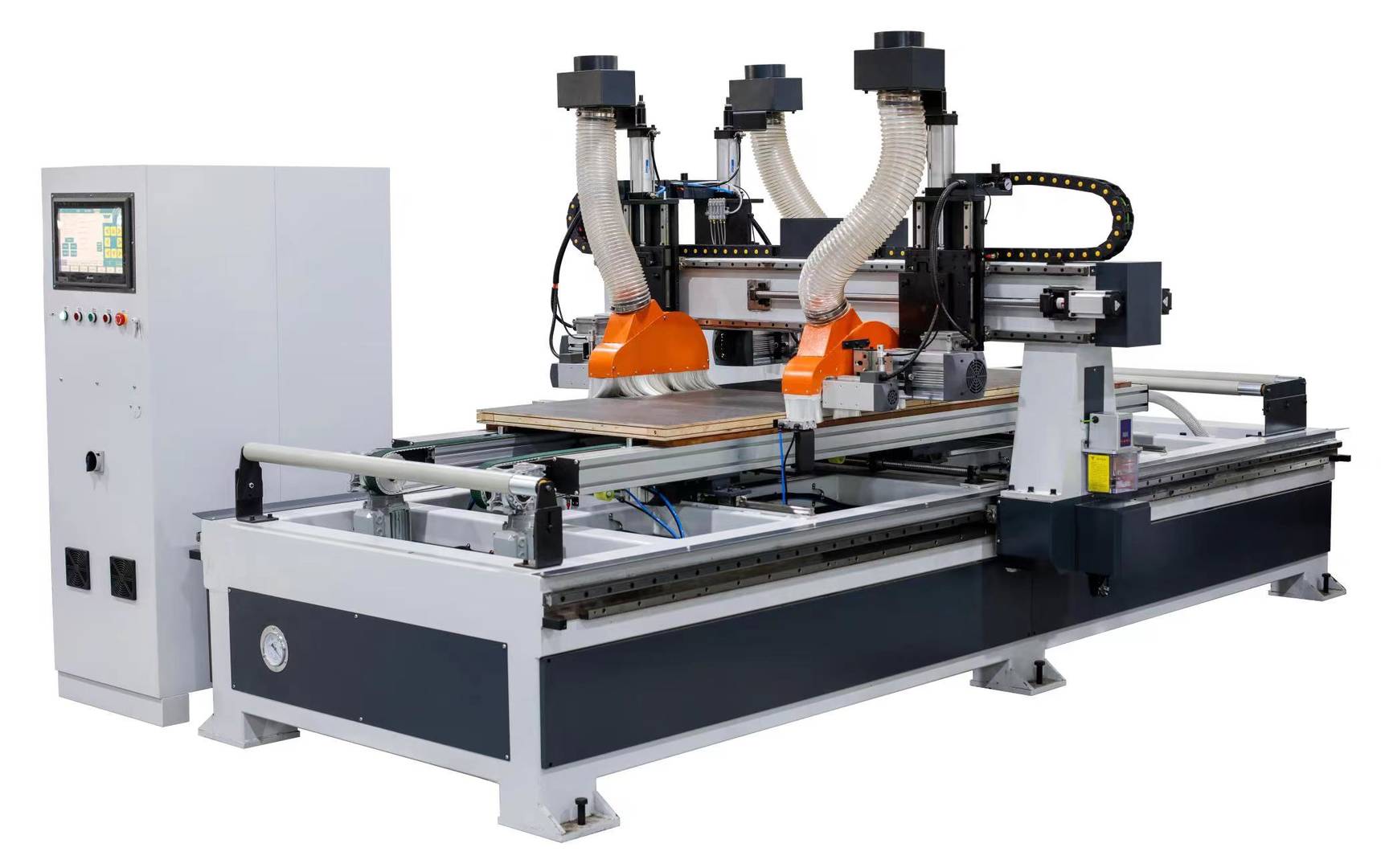

Wooden door Four Sides Saw	MSWNC49S
Working Length	1600-2500mm
Working Thickness	60mm
Working Platform	Pass type vacuum platform
X,Y Axis Maximum Moving Speed	50m/min
Sawing Speed	15m/min
Main saw shaft motor power	7.5KW*3
Auxiliary saw shaft motor power	1.5KW*3
Rotating Speed of Main saw	6000r/min
Rotating Speed of Auxiliary saw	12000r/min
Loading and unloading Motor Power	550W*2
Table opening and closing Servo motor power	750W*1
X,Y Axis Motor Power	850W*4
Vacuum fan power	4KW
Master saw blade specifications	ø30*300mm
Sub-saw blade specifications	ø22*120mm
X Y axis gear rack	2M
Z axis screw rod	TBI 2505
Y axis linear rail	HGH30
X,Z axis linear rail	HGH25
control circuit apparatus	Schneider
Screw guide lubrication	The computer feeds the oil automatically
controller	Embedded industrial controller
Total machine power	AC380V/50HZ 36.5KW
Machine Size	L4300×E2250×H2100 mm
Machine weight	3100KG
